The GW-L800 outdoor IP65 gateway is a powerful enterprise-level outdoor gateway based on LoRaWAN technology.
Designed for outdoor LoRa ® public or private network deployment.
Its highly scalable and certified IP65 solution operates in the worst (wet, dust, wind, rain, snow and extremely hot) environments, and this gateway provides excellent LoRaWAN™ network coverage in outdoor space for up to 20 km in visual (open) and up to more than 5 km in rural areas.
Whether commercial, community, or municipal coverage, it provides unparalleled coverage ability and impeccable resilience.
At the same time, the built-in WEB graphical user interface facilitates customers to quickly configure the gateway and related Settings
|
Specification |
Description |
|
Interfaces and controls |
|
|
Ethernet |
Specification description Interfaces and controls Ethernet 1x 10 / 100 Mbps Ethernet (RJ-45) supports POE + (802.3at) + AC85-265V power supply |
|
The RF antenna connector |
Two scalable RF antennas, Type N |
|
GPS Antenna Connector |
Scalable GPS antenna，TNC |
|
Parameter Configuration Interface |
WEB@WIFI |
|
Reset button |
Restart the system or restore the factory default |
|
Supply electricity |
|
|
Power input option |
PoE +，802.3at AC85-265 input AC85-265V Panel (optional) |
|
Power consumption |
<10W |
|
Sensitivity |
|
|
Receiving sensitivity |
Up-140 dBm（@SF12，125kHz） |
|
Transmitting power |
|
|
Transmission output power |
Output power is up to+25 dBm |
|
Specifications |
|
|
IP grade |
Outdoor grade, IP65 |
|
Sheathing material |
aluminium die casting |
|
Install options |
Wall and rod installation |
|
Operating temperature range |
(-40 to 70°C) |
|
Working humidity |
From 5 to 95%, non-condensing |

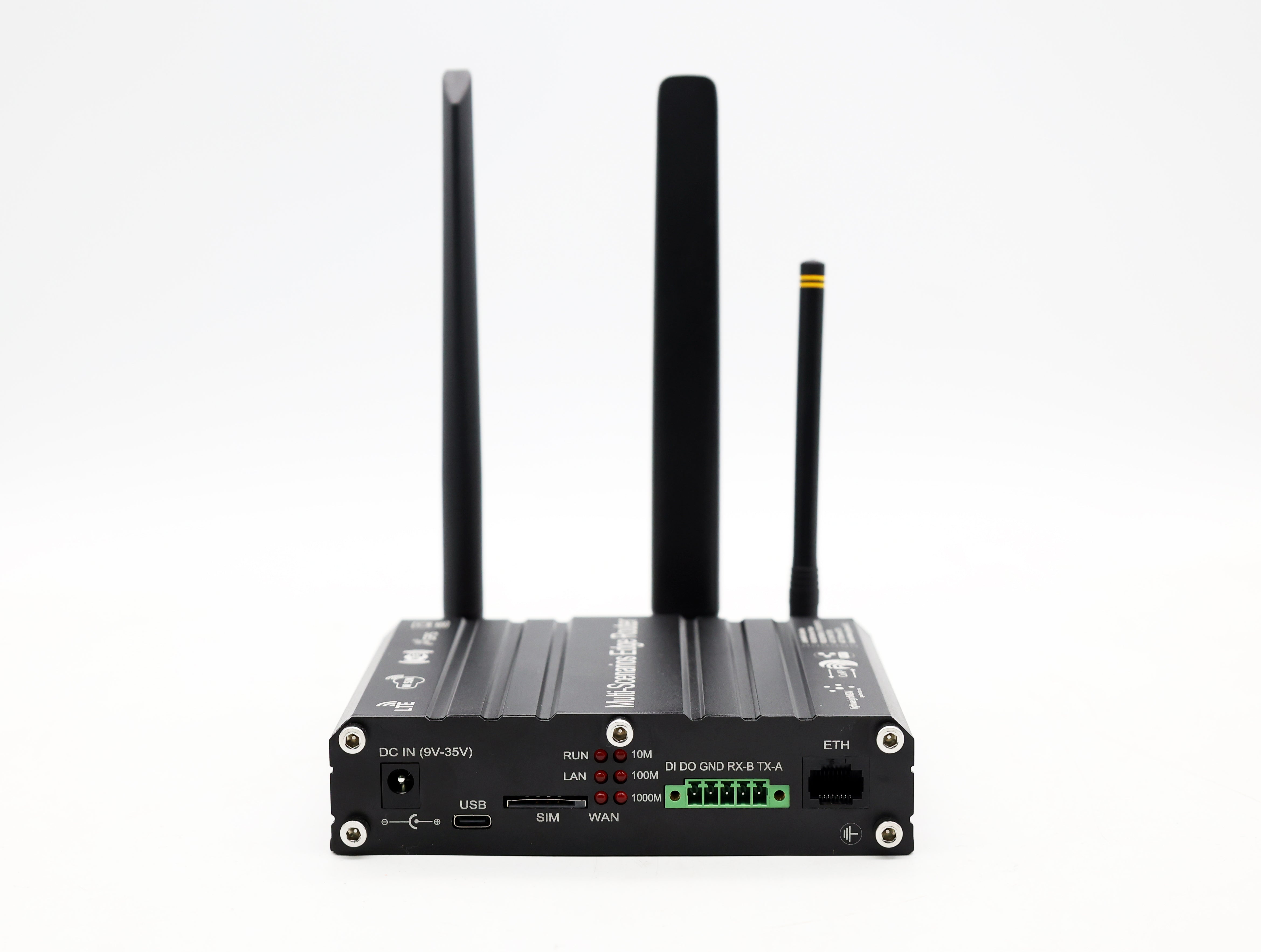

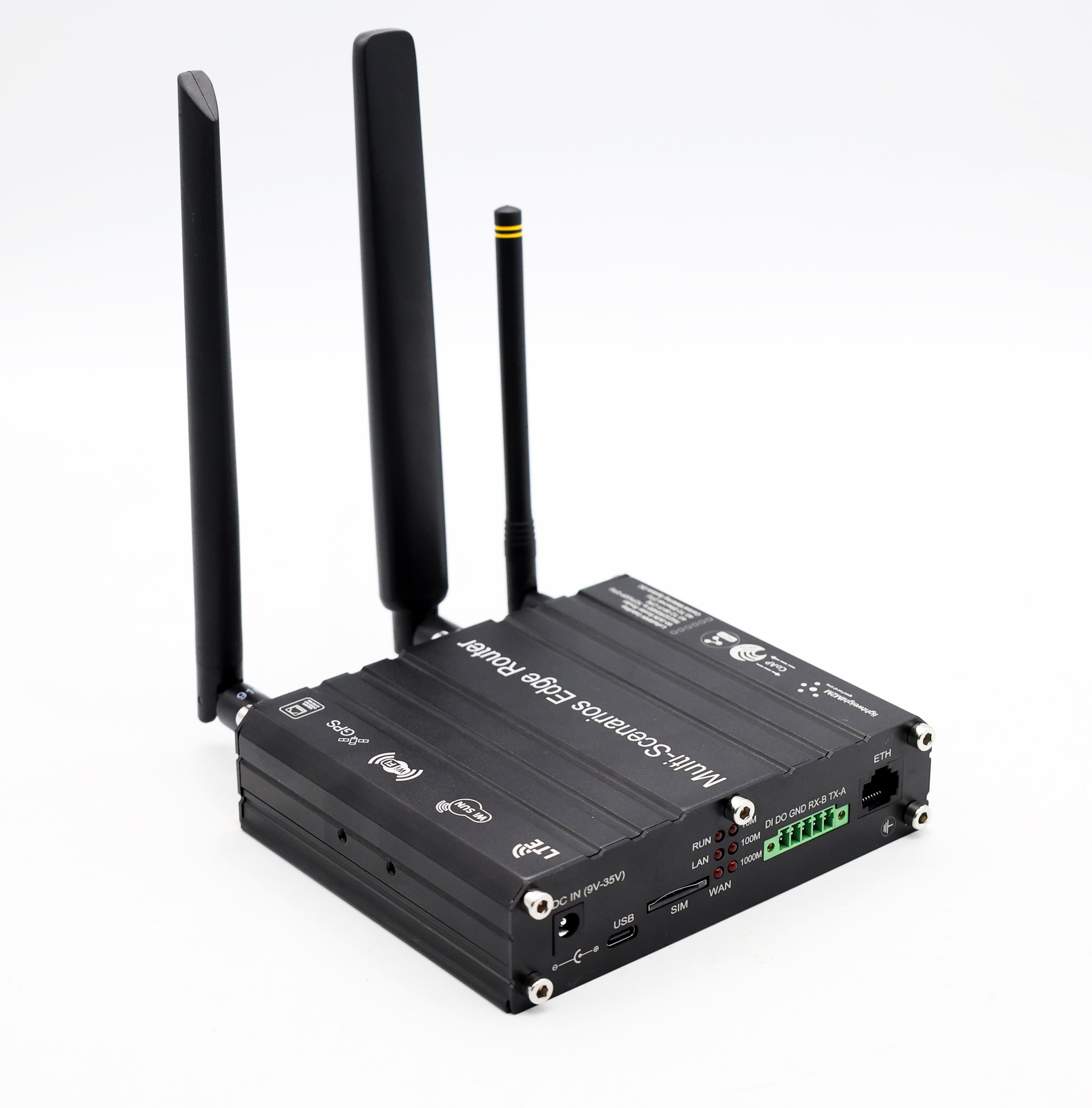

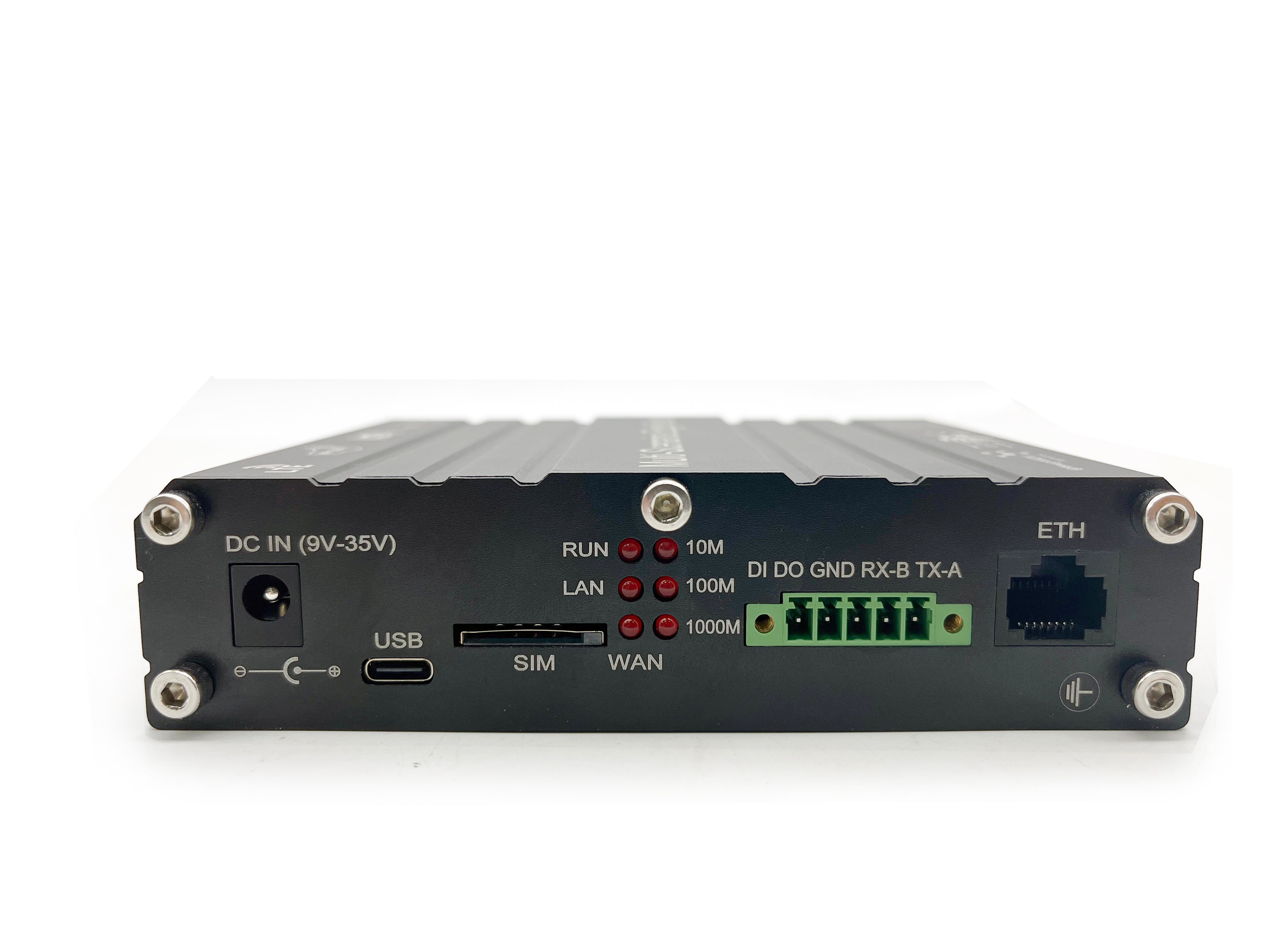

MRUT8000 is an industrial router that combines dual-SIM(2FF and chipSIM) cellular 4G LTE, Wi-Fi, and wired connectivity(Ethernet cable) options and additionally offers GNSS capabilities. Automatic WAN failover ensures solution uptime even if the primary connection is lost. Serial communication interfaces and sub -1GHz enable integrating more varied devices(Like as WI-SUN Border Router and LoRaWAN Gateway) to the solution ecosystem, even legacy equipment.Digital and analog Inputs/Outputs with dvanced OS software features facilitate equipment control, automation, and event notifications. Packed with advanced industrial software features, including Modbus, SNMP, MQTT, and multiple VPNs. The below show the main connecting of the device:
|
3.4.1. LORAWAN |
|
|
Channel |
8 (Half/Full-duplex) |
|
Frequency Band |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
|
Sensitivity |
-140dBm Sensitivity @292bps |
|
Maximum Link Allotment: |
162 dB |
|
Optimized RF Interface |
50 |
|
Output Power |
27dBm Max(EIRP) |
|
LoRaWAN Network Server |
LinkWAN,ChirpStack,TTN, |
|
Protocol |
UDP ,MQTT |
|
3.4.2. WI-SUN |
|
|
Standard |
IEEE 802.15.4g (PHY), IEEE 802.15.4e (MAC) |
|
Frequency of operation |
470-510 MHz, 779-787 MHz, 920.5-924.5 MHz, 863-870 MHz, 870-876 MHz, 920-928 MHz, 2.45 GHz |
|
Data Rate |
up to 3.6 Mbps (OFDM) |
|
Node |
5000 |
|
Optimized RF Interface |
50 |
|
Output Power |
30dBm Max(EIRP) |
|
Network Server |
AMIX |
|
Protocol |
UDP ,MQTT,IPv6 |
| Vendor | Wasion Energy |
|---|---|
| color | White, Black |
